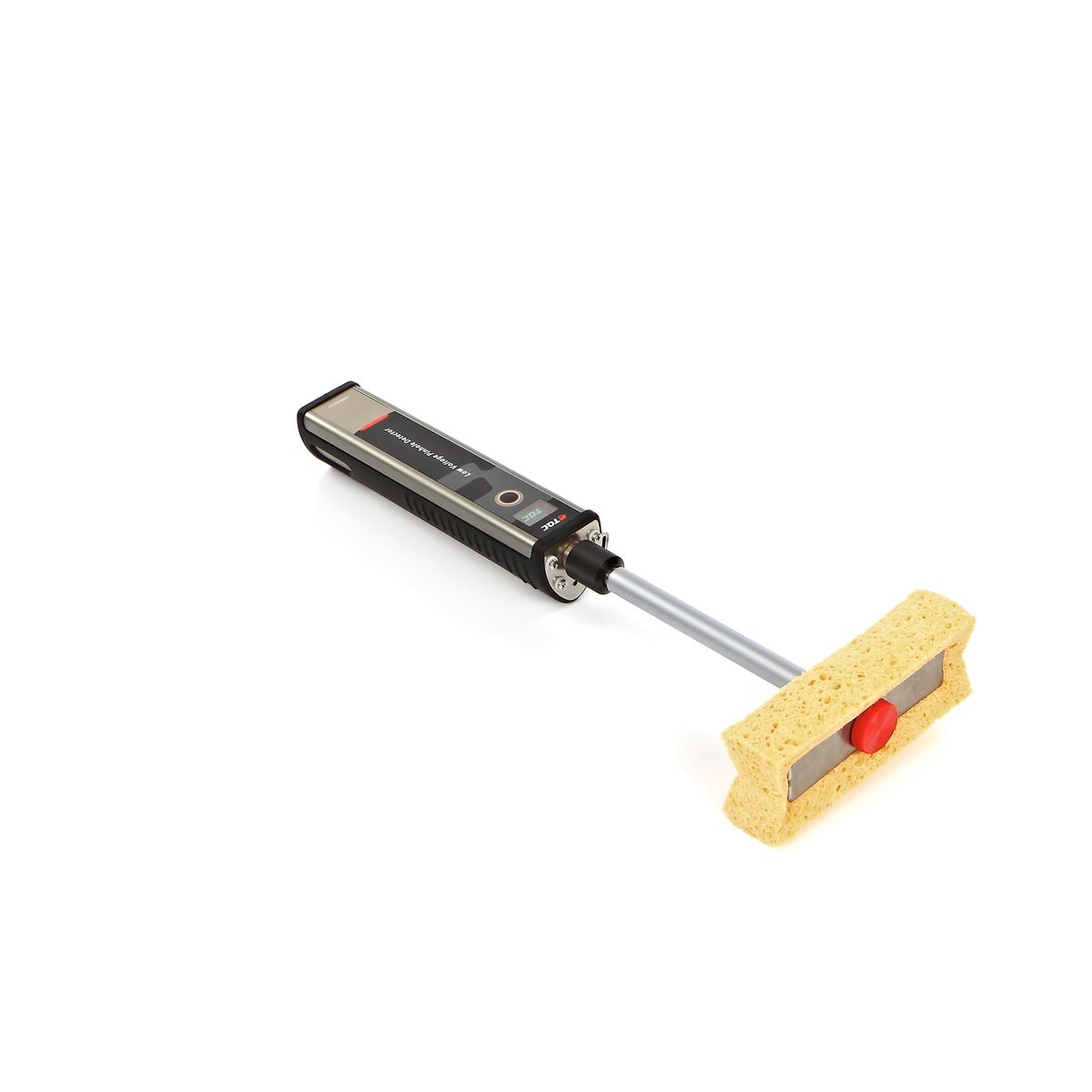

The TQC Low Voltage Pinhole Detector enables you to inspect various coatings on conductive substrates for small defects such as holidays and pinholes using the ‘wet sponge technique.’
Features of the new detector include color display with battery indicator and menu-based interface. Visual, audible, headphones and/or display and vibration feedback along with return cable connectivity detection make it easy to use. It is available in two models, the Basic (Model LD8100) and Advanced (Model LD8105). Both include automated self-diagnostics, intuitive single button controls and smart power saving feature (screen dimming, standby, auto power-off)
Technical Specs:
- Voltages (DC): Model LD8100: 9 V and 90 V; Model LD8105: 9 V, 24 V, 67.5 V, 90 V
- Measuring Range: Up to maximum 500 µm (20 mils) coating thickness
- Voltage Accuracy: ±2 % at 9 V, 24 V and 67.5 and 90 V
- Headphone Output Impedance: Approximately 75 Ω
- Headphone Connector Type: 3.5 mm jack plug
- Headphone Output Power: Maximum 150 mW
- Sensitivity: 100 kΩ for all voltages
- Units: On/Off indication (defect/intact)
- Operating Relative Humidity: 0-85 % Rh
- Display: Graphic color display, 1 inch, 96 X 64 px
- Factory Calibration: Inclusive using traceable standards
- Operation: Single button. Microprocessor menu controlled
- Instrument Dimensions: 190 X 40 X 45 mm / 7.5 X 1.6 X 1.8 inch
- Battery Lifetime (Continuous Use): Up to 130 hour (depending on the type of battery used)
The Low Voltage Pinhole Detector-Basic (LD8100) comes in a hardboard box with the following items:
- Low Voltage Pinhole Detector, Sponge Wand, Grounding cable with clamp, User manual
- Low Voltage Pinhole Detector-Advanced (LD8105)comes in a hardboard box with the following items: Low Voltage Pinhole Detector, Sponge Wand, Grounding cable with clamp, ser manual.
