New Husqvarna TS 70 and TS 90 tile saws

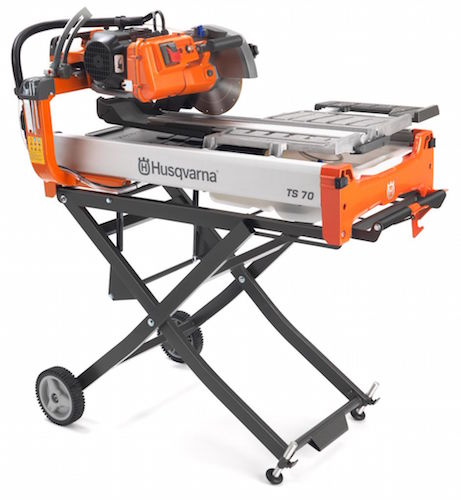

Husqvarna TS 70 Tile Saw Husqvarna Construction Products has added two new tile saws to their line-up, the TS 70 and TS 90. Both saws are equipped with innovation features, such as the ability to cut longer tile and adjust the saw’s height, to take any tile installation project to the next level of ergonomic support and production.

“The Husqvarna TS 60 tile saw was our first saw to feature the patented Jet Stream Water Containment system, which allows tile contractors or homeowners to cut indoors with little to no mess. Now we have developed two more saws with this innovative feature that can also cut longer tile – a growing trend among tile installations,” says Mark Michaels, Director of Product Management – Americas.

Both saws feature the patented Jet Stream Water Containment system, which keeps water, slurry, and debris controlled; delivering a cleaner tile face and work space. Water is stored in a separate water tank that can be removed from the saw frame for filling and cleaning. The tank is housed within the saw frame, enabling the user to move saw and water around easily. The double water splash guard decreases water spray behind the saw and makes cleaning easier.

The saws can make 22.5 degree and 45 degree bevel cuts by simply rotating the saw head. The saw head can also easily switch between plunge and miter cutting, making it fast and versatile on the jobsite. The difference in the saws comes in their cutting capacity. The TS 70 is able to handle materials up to 32 inches long in a compact, dependable and easy to operate form factor. It can also cut diagonally up to 28-inch or a 20-x-20-inch tile. The TS 90 features a unique dual movement cart that enables the operator to cut large tile while staying in place. As the

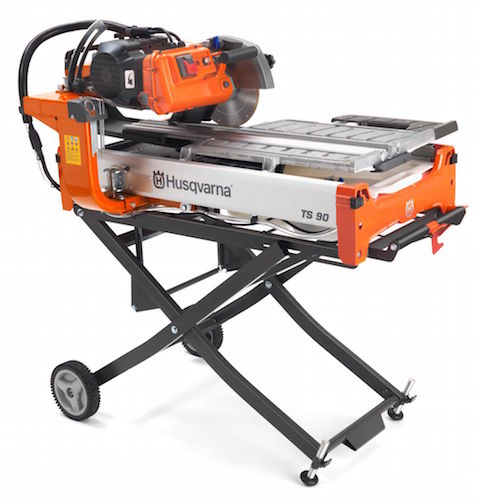

Husqvarna TS 90 Tile Saw DUAL MOVEMENT
The TS 90’s dual movement cart enables the operator to stay in one place while cutting large tiles.
As the operator pushes the tile toward the saw head, the saw head moves toward the operator. This means the TS 90 is perfect for cutting plank tiles, larger tiles and is also effective on smaller tiles. It behaves like a rail saw with 36-inch rip cuts and diagonally cutting 24-x-24-inch tiles.

Both saws can be used with either a fixed height or adjustable stand. The fixed height stand allows for easy set-up and transportation due to integrated transport wheels. The adjustable stand with the saw locked in place can also be transported with one hand. The adjustable stand also allows the user to position the saw at various heights or collapse it with one hand.

The TS 70 and TS 90 come with a Husqvarna Vari-Cut Tile blade and is the perfect combination for chip-free cutting of porcelain tile, granite, quarry tile, or dense floor tile.

MAIN BENEFITS

Water management – the patented Jet Stream Water Containment system keeps water, slurry and debris controlled; delivering a cleaner tile face and work space.
Exceptional cutting depth – the TS 70 can rip cut 32" and diagonally cut 20" x 20" tiles. The TS 90 can make 36" rip cuts and diagonally cut 24" x 24" tiles.
Easy transport – quick and easy set-up and breakdown mean more time cutting on the job.
Separate water tank – supplies all water needed to the blade and cart. It is stored in the saw frame and does not have to be moved separately.

TECHNICAL SPECIFICATIONS – TS 70
